Triangle Counting#

Zachary Karate Community Graph

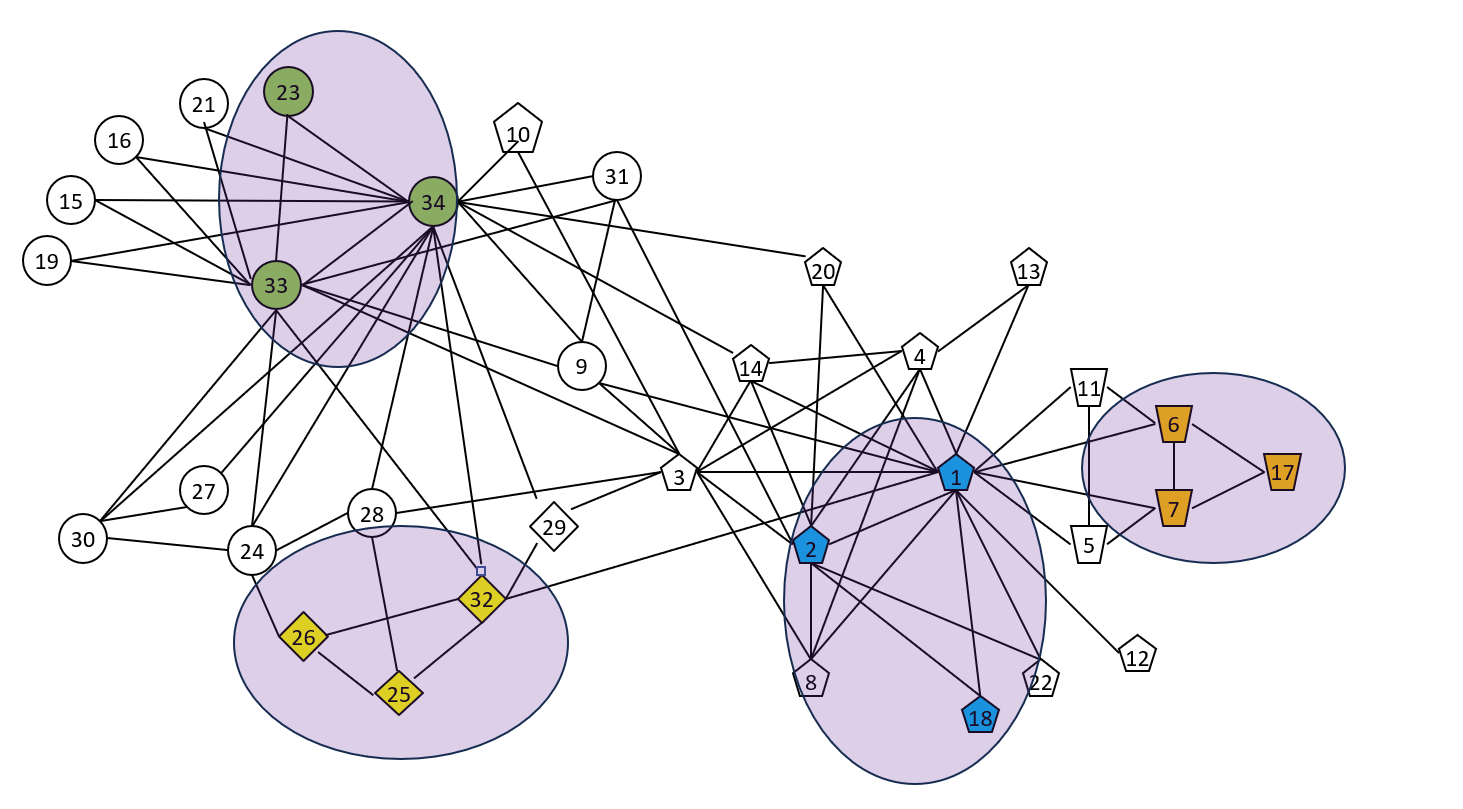

Triangle Counting, as the name implies, finds the number of triangles in a graph. Each triangle is a set of three nodes that are connected to each other. They are important in computing the Clustering Coefficient and can be used for clustering. In the visualization of the Zachary Karate Club data above, several of the triangles are highlighted in purple.

\[ \text{Triangle Count} = \frac{1}{3} \sum_{(u,v) \in E} |N(u) \cap N(v)| \]

  • \(N(u)\) - set of neigbors of node \(u\)

  • \(N(v)\) - set of neigbors of node \(v\)

  • \(N(u) \cap N(v)\) - intersection of the neigbors of nodes \(u\) and \(v\) that contain an edge \((u,v)\)

  • Divide by three to remove triple counting

When to use Triangle Counting#

  • To detect anomalies. When compared to the graph triangle density, local sparsity or access can indicate outliers

  • Ranking importance, nodes in many triangles are a useful place to start in network analysis

  • Quantifying clustering by calculating the Clustering Coefficient which is an important network characteristic measuring density.

When not to use Triangle Counting#

  • Sparse graphs which don’t contain many triangles since it might eliminate edges

  • When searching for overlapping communities

  • When you are interested in paths in the graph rather than communities

How computationally expensive is it?#

In cuGraph, the set intersection algorithm is used to count triangles. The cost of that algorithm is in terms of Big O:

\[ O\left( \sum_{(u,v) \in E} \min\left( d(u),\ d(v) \right) \right) \]

  • \(E\) - edges in the graph

  • \(d(u)\) - the degree of node \(u\)

  • \(d(v)\) - degree of node \(v\)

  • \(\min\left( d(u),\ d(v) \right)\) - chooses the smaller degree node for efficiency
