Background

This document provides some background into the rapidsmpf is designed to solve.

Architecture

rapidsmpf uses a network of nodes to process data. Typically you’ll have one rapidsmpf node per GPU. You might form a rapidsmpf network on a single machine with multiple GPUs, or from multiple machines, each with one or more GPUs.

All nodes in the network can pass messages and data to each other using an underlying communication transport like UCX or MPI. Nodes work together to perform an operation like a Shuffle.

At a high level, a shuffle operation involves these steps:

1. Your program inserts chunks of data to the Shuffler on each node.

2. The Shuffler on that node processes that chunk by either sending it to another node or keeping it for itself.

3. Your program extracts chunks of data from each node once it’s ready

There are more details around how chunks are assigned to nodes and how memory is managed. But at a high level, your program is responsible for inserting chunks somewhere and extracting (the now shuffled) chunks once they’ve been moved to the correct node.

Nodes shuffle chunks of data. These are arbitrary batches of bytes that have somehow been assigned to be processed by a specific node. Shuffling a table on the hash of one or more columns is just one example use case that rapisdmpfs serves.

Shuffle

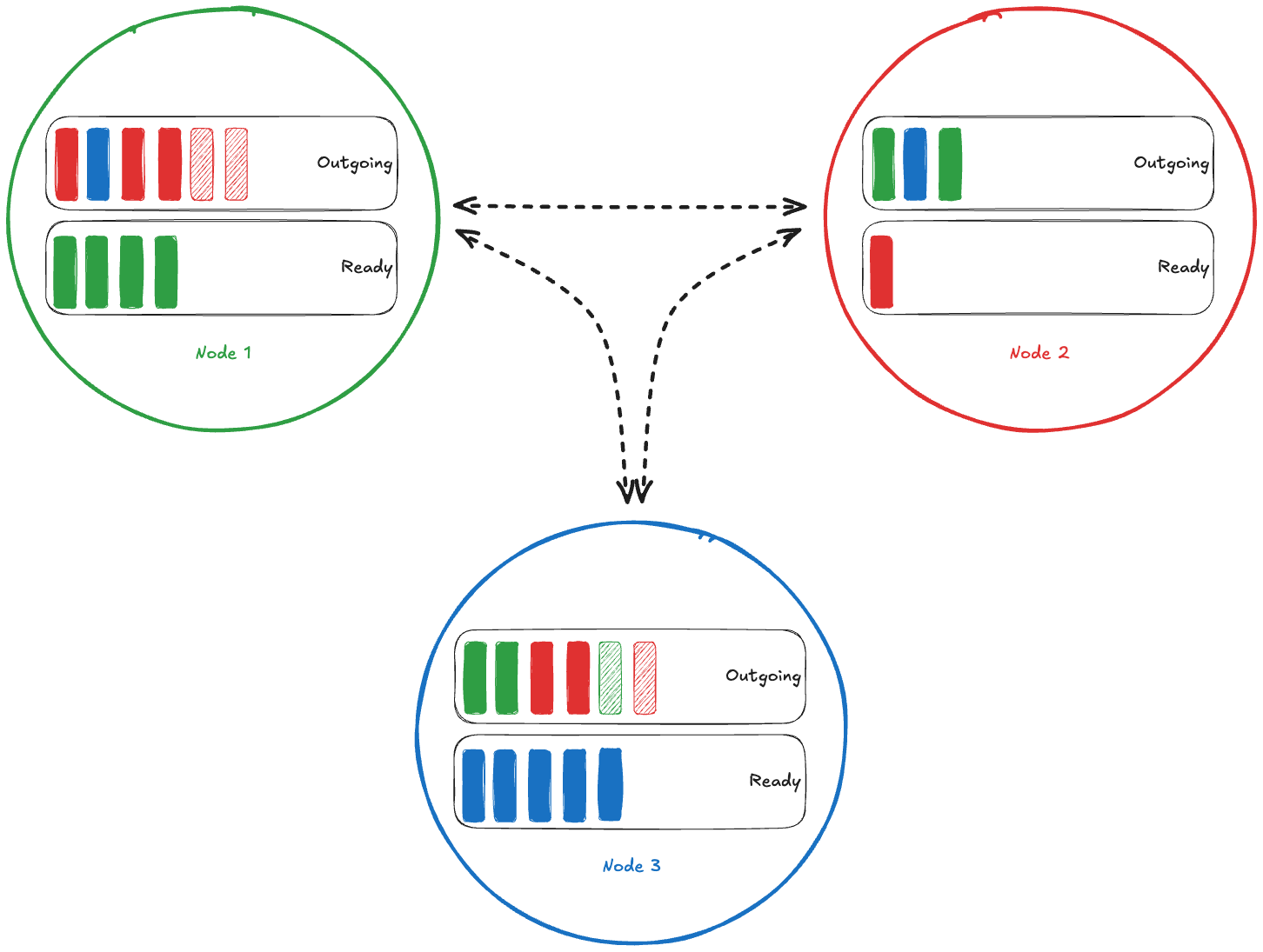

This diagram shows a network of with three nodes in the middle of a Shuffle operation.

As your program inserts chunks of data into a node (see below), it’s assigned to a particular node. In the diagram above, this is shown by color: each node has a particular color (the color of its circle) and each chunk with that color will be sent to its matching node. So, for example, all of the green chunks will be extracted from the green ndoe in the top-left. Note that the number of different chunk types (colors in this diagram) is typically larger than the number of nodes, and so each node will be responsible for multiple output chunk types.

The node you insert the chunk into is responsible for getting the data to the correct output node. It does so by placing the chunk in its Outgoing message box and then working to send it (shown by the black lines connecting the nodes).

Internally, the nodes involved in a shuffle continuously

• receive newly inserted chunks from your program

• move chunks to their intended nodes

• receive chunks from other nodes

• hand off ready chunks when your program extracts them

During a Shuffle, device memory might run low on more or more nodes in the network. rapidsmpf is able to spill chunks of data from device memory to a larger pool (e.g. host memory). In the diagram above, this is shown with the hatched chunks.

Example: Shuffle a Table on a Column

The rapidsmpf Shuffler operates on chunks of data, without really caring what those bytes represent. But one common use case is shuffling a table on (the hash of) one or more columns. In this scenario, rapidsmpf can be used as part of a Shuffle Join implementation.

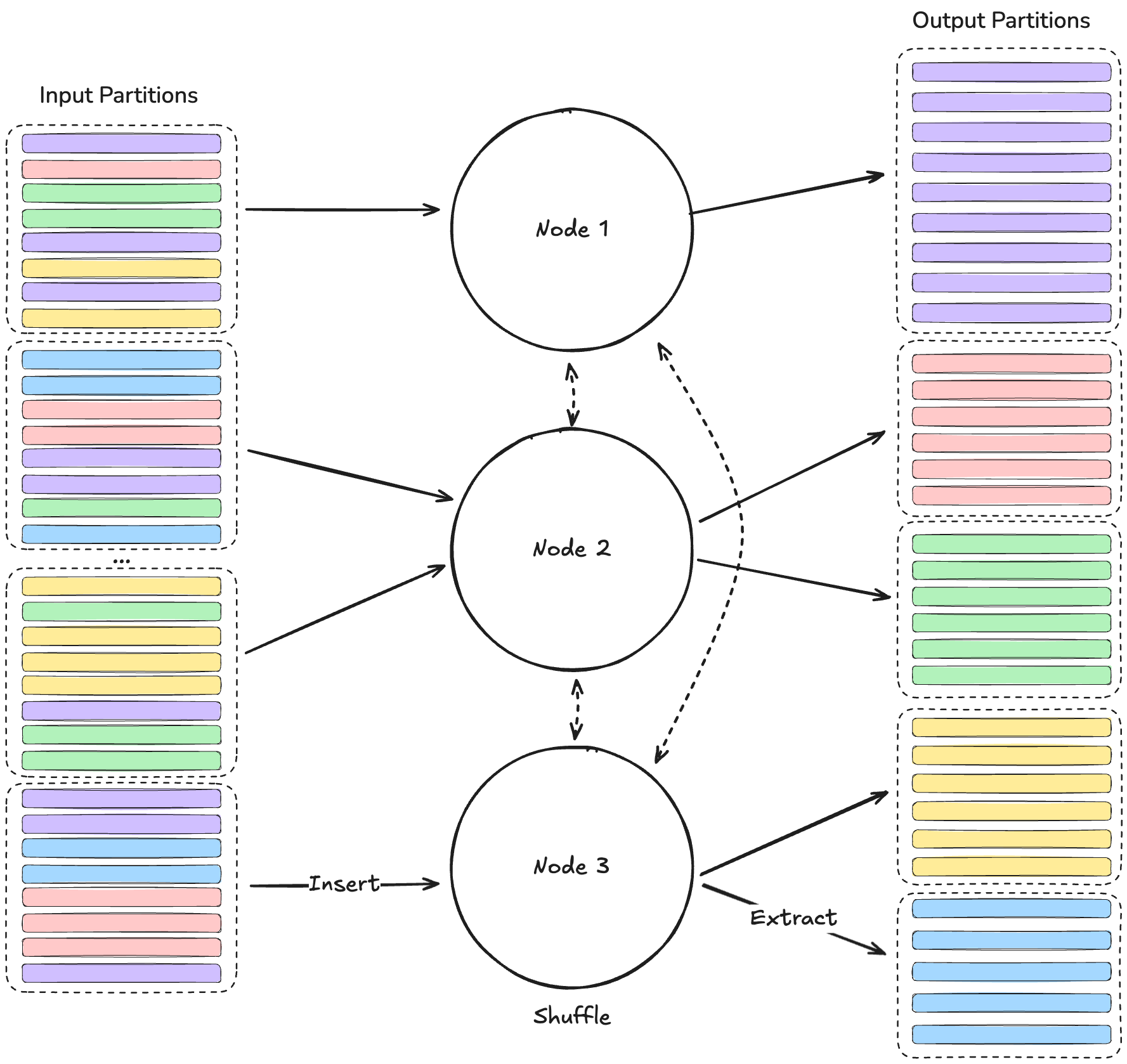

This diagram shows multiple nodes working together to shuffle a large, logical Table.

Suppose you have a large logical table that’s split into a number of partitions. In the diagram above, this is shown as the different dashed boxes on the left-hand side. In this example, we’ve shown four partitions, but this could be much larger. Each row in the table is assigned to some group (by the hash of the columns you’re joining on, say), which is shown by the color of the row.

Your program inserts data to the shuffler. In this case, it’s inserting chunks that represent pieces of the table that have been partitioned (by hash key) and packed into a chunk. Each partition inserts its data into one of the nodes, typically the node running on the same GPU as the in-memory partition.

Each node involved in the shuffle knows which nodes are responsible for which hash keys. For example, Node 1 knows that it’s responsible for the purple chunks, needs to send red chunks to Node 2, etc.

Each input partition possibly includes data for each hash key. All the nodes involved in the shuffle move data to get all the chunks with a particular hash key on the correct node (spilling if needed). This is shown in the middle section.

As chunks become “ready” (see above), your program can extract chunks and process them as necessary. This is shown on the right-hand side.

Shuffle Statistics

Shuffles can be configured to collect statistics, which can help you understand the performance of the system. This table gives an overview of the different statistics collected.

Name	Type	Description
spill-bytes-device-to-host	int	The size in bytes of data moved from device to host when spilling data.
spill-time-device-to-host	float	The duration of the device to host spill. The unit is platform dependent.
spill-bytes-host-to-device	int	The size in bytes of data moved from host to device when unspilling data.
spill-time-host-to-device	float	The duration of the host to device spill. The unit is platform dependent.
spill-bytes-recv-to-host	int	The size in bytes of data received into host memory on one node from some other node.
shuffle-payload-send	int	The size in bytes of data transferred from a node (including locally, from a node to itself).
shuffle-payload-recv	int	The size in bytes of data transferred to a node (including locally, from a node to itself).
event-loop-total	float	The duration of a Shuffler’s event loop iteration. The unit is platform dependent.
event-loop-metadata-send	float	The duration of sending metadata from one node to another. The unit is platform dependent.
event-loop-metadata-recv	float	The duration of receiving any outstanding metadata messages from other nodes. The unit is platform dependent.
event-loop-post-incoming-chunk-recv	float	The duration of posting receives for any incoming chunks from other nodes. The unit is platform dependent.
event-loop-init-gpu-data-send	float	The duration of receiving ready-for-data messages and initiating data send operations. The duration of the actual data transfer is not captured by this statistic. The unit is platform dependent.
event-loop-check-future-finish	float	The duration spent checking if any data has finished being sent. The unit is platform dependent.

Statistics are available in both C++ and Python.
