Deploying End-to-End Kafka Streaming SI Detection Pipeline with cuDF, Morpheus, and Triton on EKS#
In this example workflow, we demonstrate how to deploy an NVIDIA GPU-accelerated streaming pipeline for Sensitive Information (SI) detection using Morpheus, cuDF, and Triton Inference Server on Amazon EKS.
We build upon the existing Morpheus NLP SI Detection example and enhance it to showcase a production-style end-to-end deployment integrated with Apache Kafka for data streaming.
The pipeline, under pipeline-dockerfile/run_pipeline_kafka.py
in the side panel, includes the
following components:
Kafka Data Streaming Source Stage: We introduce Apache Kafka for streaming data. A custom Kafka producer was created to continuously publish network data to a Kafka topic. Code under
producer-dockerfile/producer.py
in the side panel.cuDF Message Filtering Stage: The data stream first flows through a message filtering stage that leverages
cuDF
to preprocess and filter messages based on custom logic. Code underpipeline-dockerfile/message_filter_stage.py
in the side panel.SI Detection with Morpheus and Triton: The filtered data passes through multiple stages to prepare data for inference, perform the inference and classify the data. We use Morpheus’ provided NLP SI Detection model to identify potentially sensitive information in the network packet data. For more details on the model check the original example on the Morpheus documentation
cuDF Network Traffic Analysis Stage: We incorporate an additional analysis stage using
cuDF
to perform some network traffic analytics for enriched context and anomaly detection. Code underpipeline-dockerfile/network_traffic_analyzer_stage.py
in the side panel.Kafka Output Sink: Finally, the processed and enriched data, with SI detection results and traffic insights, is published to a downstream Kafka topic for further processing, alerting, or storage.
The entire pipeline is containerized and deployed on Amazon EKS, leveraging Kubernetes for orchestration, scalability, and resiliency in a cloud-native environment.
Deployment Components#
The pipeline is deployed on Amazon EKS using several Kubernetes manifests:
Kafka Deployment (k8s/kafka
)#
The Kafka cluster is deployed using the Strimzi Operator, which simplifies Kafka deployment and management on Kubernetes. See instructions on section Deploying on EKS
The deployment configuration includes:
Kafka cluster setup
kafka-single-node.yaml
.A modification of the file https://strimzi.io/examples/latest/kafka/kafka-single-node.yaml where we modify:
Cluster name to
kafka-cluster
.Modify the volume to use
type: ephemeral
and usesizeLimit: 5Gi
(instead ofsize: 100Gi
that corresponded totype: persistent-claim
).
Kafka topics setup.
Kafka Producer Deployment (k8s/kafka-producer
)#
The Kafka producer is deployed as a separate Pod using the kafka-producer.yaml
manifest. It continuously generates and publishes network data to the Kafka topic.
Uses
kafka-python
for message production.Contains the producer script for generating network data.
This producer script is containerized using a custom Docker image that is already built and public. But if you want to build and push this image yourself, you need:
Log in to docker
docker login
.Download the
scripts
directory from the sidebar.Navigate to the
producer-dockerfile
directory and run.docker build -t <docker-username>/kafka-producer-image:latest .
Push image to docker.
Replace the image link in the
kafka-producer/kafka-producer.yaml
.
Triton-Morpheus Deployment (k8s/triton
)#
The inference server is deployed using the NVIDIA Morpheus-Triton Inference Server docker image
nvcr.io/nvidia/morpheus/morpheus-tritonserver-models:25.02
.
Morpheus Pipeline Deployment (k8s/morpheus-pipeline
)#
The core processing pipeline is deployed as a separate Pod that, uses an image that uses a custom image we created for this purpose.
Runs the Morpheus nightly conda build.
Contains all pipeline and stage scripts
scripts/pipeline-dockerfile/*.py
.Processes the streaming data through the various stages.
This image is already built and public. But if you want to build and push this image yourself, you need:
Log in to docker
docker login
.Download the
scripts
directory from the sidebar.Navigate to the
pipeline-dockerfile
directory and run.docker build -t <docker-username>/morpheus-pipeline-image:latest .
Push image to docker
Replace the image link in the
morpheus-pipeline/morpheus-pipeline-deployment.yaml
Deploying on EKS#
Prerequisites#
You need to have the aws
CLI tool and eksctl
CLI tool installed along with kubectl
for managing Kubernetes.
Launch GPU enabled EKS cluster#
We launch a GPU enabled EKS cluster with eksctl
.
Note
You will need to create or import a public SSH key to be able to execute the following command. In your aws console under
EC2
in the side panel under Network & Security > Key Pairs, you can create a key pair or import (see “Actions” dropdown) one you’ve created locally.If you are not using your default AWS profile, add
--profile <your-profile>
to the following command.
$ eksctl create cluster morpheus-rapids \
--version 1.32 \
--nodes 2 \
--node-type=g4dn.xlarge \
--timeout=40m \
--ssh-access \
--ssh-public-key <public key ID> \ # Name assigned during creation of your key in aws console\
--region us-east-1 \
--zones=us-east-1c,us-east-1b,us-east-1d \
--auto-kubeconfig
To access the cluster we need to pull down the credentials. Add --profile <your-profile>
if you are not using the default profile.
$ aws eks --region us-east-1 update-kubeconfig --name morpheus-rapids
Deploy the Strimzi Operator#
Strimzi is an open-source project that provides a way to run Apache Kafka on Kubernetes. It simplifies the deployment and management of Kafka clusters by providing a Kubernetes operators that handle the complex tasks of setting up and maintaining Kafka.
We use kubectl
to deploy the operator. In our case we are deploying everything on the default
namespace, and the entire pipeline is design for that.
$ kubectl create -f 'https://strimzi.io/install/latest?namespace=default'
Deploy the pipeline#
Get all the files in the k8s
directory, you should be able to download them from the sidebar, or you can find them in
rapidsai/deployment
$ kubectl apply -f k8s --recursive
This will take around 15 minutes to get all the Pods up and running, you will see for a while that the the morpheus-pipeline
Pod fails and try to reconcile. This happens because the triton inference Pod takes a while to get up and running.

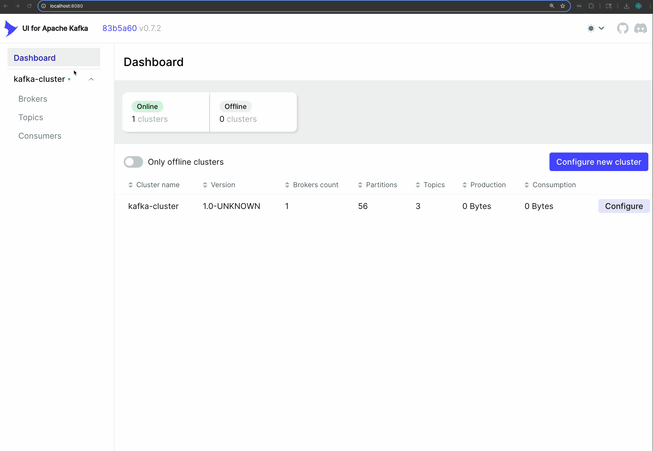

Kafka UI: checking the pipeline results#
Once all the Pods are running, you can check the input topic and the results topic in the Kafka UI by forwarding the port to your local host
$ kubectl port-forward svc/kafka-ui 8080:80
In your browser go to http://localhost:8080/
and you will see:
Conclusion#
This example demonstrates how to build and deploy a production-like, GPU-accelerated streaming pipeline for sensitive information detection using NVIDIA RAPIDS, Morpheus, and Triton Inference Server on Amazon EKS while integrating Apache Kafka for data streaming capabilities. This architecture showcases how modern streaming technologies combine with GPU-accelerated inference to create efficient, production-grade solutions for sensitive information detection.
