Builder class for constructing std::shared_ptr<ucxx::RequestMem> objects. More...

#include <request_mem_builder.h>

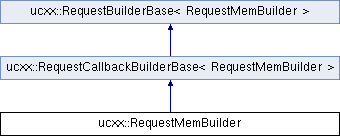

Inheritance diagram for ucxx::RequestMemBuilder:

Public Member Functions
	RequestMemBuilder (std::shared_ptr< Endpoint > endpoint, std::variant< data::MemPut, data::MemGet > requestData)
	Constructor for `RequestMemBuilder` with required parameters. More...

RequestMemBuilder &	remoteAddressOffset (uint64_t offset) &
	Set the offset from the remote base address. More...

RequestMemBuilder &&	remoteAddressOffset (uint64_t offset) &&
	Set the offset from the remote base address on a temporary builder. More...

std::shared_ptr< RequestMem >	build ()
	Build and return the `RequestMem`. More...

	operator std::shared_ptr< RequestMem > ()
	Implicit conversion operator to `shared_ptr<RequestMem>`. More...

	operator std::shared_ptr< Request > ()
	Implicit conversion operator to `shared_ptr<Request>`. More...

Public Member Functions inherited from ucxx::RequestCallbackBuilderBase< RequestMemBuilder >
RequestMemBuilder &	callbackFunction (RequestCallbackUserFunction fn) &
	Set the user-defined callback function to call upon completion. More...

RequestMemBuilder &&	callbackFunction (RequestCallbackUserFunction fn) &&
	Set the user-defined callback function on a temporary builder. More...

RequestMemBuilder &	callbackData (RequestCallbackUserData data) &
	Set the user-defined data to pass to the callback function. More...

RequestMemBuilder &&	callbackData (RequestCallbackUserData data) &&
	Set the user-defined data to pass to the callback function on a temporary builder. More...

Public Member Functions inherited from ucxx::RequestBuilderBase< Derived >
	RequestBuilderBase ()=default
	Default constructor.

	RequestBuilderBase (const RequestBuilderBase &)=delete
	Copy constructor disabled to prevent duplicate request submissions.

RequestBuilderBase &	operator= (const RequestBuilderBase &)=delete
	Copy assignment disabled to prevent duplicate request submissions.

	RequestBuilderBase (RequestBuilderBase &&) noexcept=default
	Move constructor.

RequestBuilderBase &	operator= (RequestBuilderBase &&)=default
	Move assignment operator.

Derived &	pythonFuture (bool enable=true) &
	Configure Python future support. More...

Derived &&	pythonFuture (bool enable=true) &&
	Configure Python future support on a temporary builder. More...

Additional Inherited Members
Protected Member Functions inherited from ucxx::RequestBuilderBase< Derived >
void	markBuilt ()
	Assert that build() has not been called yet, then mark as built. More...

Protected Attributes inherited from ucxx::RequestCallbackBuilderBase< RequestMemBuilder >
RequestCallbackUserFunction	_callbackFunction
	User callback on completion.

RequestCallbackUserData	_callbackData
	Data passed to callback.

Protected Attributes inherited from ucxx::RequestBuilderBase< Derived >
bool	_enablePythonFuture {false}
	Enable Python future support.

bool	_built {false}
	Whether build() has already been called.

Detailed Description

Builder class for constructing std::shared_ptr<ucxx::RequestMem> objects.

Request builders capture the arguments required to create a request and expose optional settings through fluent setters. Construction happens when build() is called or when the builder is implicitly converted to a compatible std::shared_ptr.

Request builders are move-only and single-use. Calling build() or implicitly converting the same builder object more than once throws std::logic_error. The builder is consumed before request validation or construction completes; if that first attempt throws, retrying the same builder still throws std::logic_error.

Request builder objects are not thread-safe. Accessing the same builder object from multiple threads requires external synchronization. Distinct builder objects are independent.

Each request-specific factory function returns the corresponding builder. Required arguments are passed to the factory function, while optional settings such as Python future notification and completion callbacks are configured through method chaining when supported by that request type.

The endpoint and requestData are required and must be provided to requestMemBuilder().

auto req = ucxx::requestMemBuilder(endpoint, memPutData)
             .pythonFuture(true)
             .callbackFunction(callback)
             .callbackData(callbackData)
             .build();

std::shared_ptr<ucxx::RequestMem> memReq =
  ucxx::requestMemBuilder(endpoint, memGetData);

Constructor & Destructor Documentation

◆ RequestMemBuilder()

ucxx::RequestMemBuilder::RequestMemBuilder	(	std::shared_ptr< Endpoint >	endpoint,
		std::variant< data::MemPut, data::MemGet >	requestData
	)

explicit

Constructor for RequestMemBuilder with required parameters.

Parameters

[in]	endpoint	the `std::shared_ptr<Endpoint>` parent component.
[in]	requestData	container of the specified message type, including all type-specific data.

Member Function Documentation

◆ build()

std::shared_ptr<RequestMem> ucxx::RequestMemBuilder::build ( )

Build and return the RequestMem.

Returns: The constructed shared_ptr<ucxx::RequestMem> object.

◆ operator std::shared_ptr< Request >()

ucxx::RequestMemBuilder::operator std::shared_ptr< Request > ( )

Implicit conversion operator to shared_ptr<Request>.

Returns: The constructed request as shared_ptr<ucxx::Request>.

◆ operator std::shared_ptr< RequestMem >()

ucxx::RequestMemBuilder::operator std::shared_ptr< RequestMem > ( )

Implicit conversion operator to shared_ptr<RequestMem>.

Returns: The constructed shared_ptr<ucxx::RequestMem> object.

◆ remoteAddressOffset() [1/2]

RequestMemBuilder& ucxx::RequestMemBuilder::remoteAddressOffset ( uint64_t offset ) &

Set the offset from the remote base address.

Parameters

[in] offset offset in bytes from the remote base address.

Returns: Reference to this builder for method chaining.

◆ remoteAddressOffset() [2/2]

RequestMemBuilder&& ucxx::RequestMemBuilder::remoteAddressOffset ( uint64_t offset ) &&

Set the offset from the remote base address on a temporary builder.

Parameters

[in] offset offset in bytes from the remote base address.

Returns: Rvalue reference to this builder for method chaining.

The documentation for this class was generated from the following file:

/__w/ucxx/ucxx/cpp/include/ucxx/request_mem_builder.h
