An immutable, non-owning view of device data as a column of elements that is trivially copyable and usable in CUDA device code and offline-compiled code (i.e. NVRTC). More...

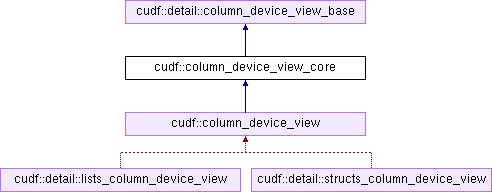

Inheritance diagram for cudf::column_device_view_core:

Public Member Functions
	column_device_view_core (column_device_view_core const &)=default
	Copy constructor.

	column_device_view_core (column_device_view_core &&)=default
	Move constructor.

column_device_view_core &	operator= (column_device_view_core const &)=default
	Copy assignment operator. More...

column_device_view_core &	operator= (column_device_view_core &&)=default
	Move assignment operator. More...

	column_device_view_core (column_view column, void h_ptr, void d_ptr)
	Creates an instance of this class using the specified host memory pointer (h_ptr) to store child objects and the device memory pointer (d_ptr) as a base for any child object pointers. More...

CUDF_HOST_DEVICE column_device_view_core	slice (size_type offset, size_type size) const noexcept
	Get a new raw_column_device_view which is a slice of this column. More...

template<typename T , CUDF_ENABLE_IF(is_rep_layout_compatible< T >()) >
T	element (size_type element_index) const noexcept
	Returns reference to element at the specified index. More...

template<typename T , CUDF_ENABLE_IF(cuda::std::is_same_v< T, string_view >) >
T	element (size_type element_index) const noexcept
	Returns `string_view` to the string element at the specified index. More...

template<typename T , CUDF_ENABLE_IF(cudf::is_fixed_point< T >()) >
T	element (size_type element_index) const noexcept
	Returns a `numeric::fixed_point` element at the specified index for a `fixed_point` column. More...

column_device_view_core	child (size_type child_index) const noexcept
	Returns the specified child. More...

CUDF_HOST_DEVICE size_type	num_child_columns () const noexcept
	Returns the number of child columns. More...

Public Member Functions inherited from cudf::detail::column_device_view_base
	column_device_view_base (column_device_view_base const &)=default
	Copy constructor.

	column_device_view_base (column_device_view_base &&)=default
	Move constructor.

column_device_view_base &	operator= (column_device_view_base const &)=default
	Copy assignment operator. More...

column_device_view_base &	operator= (column_device_view_base &&)=default
	Move assignment operator. More...

template<typename T = void, CUDF_ENABLE_IF(cuda::std::is_same_v< T, void > or is_rep_layout_compatible< T >()) >
CUDF_HOST_DEVICE T const *	head () const noexcept
	Returns pointer to the base device memory allocation casted to the specified type. More...

template<typename T , CUDF_ENABLE_IF(is_rep_layout_compatible< T >()) >
CUDF_HOST_DEVICE T const *	data () const noexcept
	Returns the underlying data casted to the specified type, plus the offset. More...

CUDF_HOST_DEVICE size_type	size () const noexcept
	Returns the number of elements in the column. More...

CUDF_HOST_DEVICE data_type	type () const noexcept
	Returns the element type. More...

CUDF_HOST_DEVICE bool	nullable () const noexcept
	Indicates whether the column can contain null elements, i.e., if it has an allocated bitmask. More...

CUDF_HOST_DEVICE bitmask_type const *	null_mask () const noexcept
	Returns raw pointer to the underlying bitmask allocation. More...

CUDF_HOST_DEVICE size_type	offset () const noexcept
	Returns the index of the first element relative to the base memory allocation, i.e., what is returned from `head<T>()`. More...

bool	is_valid (size_type element_index) const noexcept
	Returns whether the specified element holds a valid value (i.e., not null). More...

bool	is_valid_nocheck (size_type element_index) const noexcept
	Returns whether the specified element holds a valid value (i.e., not null) More...

bool	is_null (size_type element_index) const noexcept
	Returns whether the specified element is null. More...

bool	is_null_nocheck (size_type element_index) const noexcept
	Returns whether the specified element is null. More...

bitmask_type	get_mask_word (size_type word_index) const noexcept
	Returns the specified bitmask word from the `null_mask()`. More...

Protected Member Functions
CUDF_HOST_DEVICE	column_device_view_core (data_type type, size_type size, void const data, bitmask_type const null_mask, size_type offset, column_device_view_core *children, size_type num_children)
	Creates an instance of this class using pre-existing device memory pointers to data, nullmask, and offset. More...

Protected Member Functions inherited from cudf::detail::column_device_view_base
CUDF_HOST_DEVICE	column_device_view_base (data_type type, size_type size, void const data, bitmask_type const null_mask, size_type offset)
	Constructs a column with the specified type, size, data, nullmask and offset. More...

Protected Attributes
column_device_view_core *	d_children {}

size_type	_num_children {}
	The number of child columns.

Protected Attributes inherited from cudf::detail::column_device_view_base
data_type	_type {type_id::EMPTY}
	Element type.

cudf::size_type	_size {}
	Number of elements.

void const *	_data {}
	Pointer to device memory containing elements.

bitmask_type const *	_null_mask {}

size_type	_offset {}

Additional Inherited Members
Static Public Attributes inherited from cudf::detail::column_device_view_base
static constexpr size_type	offsets_column_index {0}
	Child index of the offsets column.

Detailed Description

An immutable, non-owning view of device data as a column of elements that is trivially copyable and usable in CUDA device code and offline-compiled code (i.e. NVRTC).

Definition at line 344 of file column_device_view_base.cuh.

Constructor & Destructor Documentation

◆ column_device_view_core() [1/2]

cudf::column_device_view_core::column_device_view_core	(	column_view	column,
		void *	h_ptr,
		void *	d_ptr
	)

Creates an instance of this class using the specified host memory pointer (h_ptr) to store child objects and the device memory pointer (d_ptr) as a base for any child object pointers.

Parameters

column	Column view from which to create this instance.
h_ptr	Host memory pointer on which to place any child data.
d_ptr	Device memory pointer on which to base any child pointers.

◆ column_device_view_core() [2/2]

CUDF_HOST_DEVICE cudf::column_device_view_core::column_device_view_core	(	data_type	type,
		size_type	size,
		void const *	data,
		bitmask_type const *	null_mask,
		size_type	offset,
		column_device_view_core *	children,
		size_type	num_children
	)

inlineprotected

Creates an instance of this class using pre-existing device memory pointers to data, nullmask, and offset.

Parameters

type	The type of the column
size	The number of elements in the column
data	Pointer to the device memory containing the data
null_mask	Pointer to the device memory containing the null bitmask
offset	The index of the first element in the column
children	Pointer to the device memory containing child data
num_children	The number of child columns

Definition at line 501 of file column_device_view_base.cuh.

Member Function Documentation

◆ child()

column_device_view_core cudf::column_device_view_core::child ( size_type child_index ) const

inlinenoexcept

Returns the specified child.

Parameters

child_index The index of the desired child

Returns: column_view The requested child column_view

Definition at line 473 of file column_device_view_base.cuh.

◆ element() [1/3]

template<typename T , CUDF_ENABLE_IF(is_rep_layout_compatible< T >()) >

T cudf::column_device_view_core::element ( size_type element_index ) const

inlinenoexcept

Returns reference to element at the specified index.

If the element at the specified index is NULL, i.e., is_null(element_index) == true, then any attempt to use the result will lead to undefined behavior.

This function accounts for the offset.

This function does not participate in overload resolution if is_rep_layout_compatible<T> is false. Specializations of this function may exist for types T where is_rep_layout_compatible<T> is false.

Template Parameters

T	The element type

Parameters

element_index Position of the desired element

Returns: reference to the element at the specified index

Definition at line 420 of file column_device_view_base.cuh.

◆ element() [2/3]

template<typename T , CUDF_ENABLE_IF(cuda::std::is_same_v< T, string_view >) >

T cudf::column_device_view_core::element ( size_type element_index ) const

inlinenoexcept

Returns string_view to the string element at the specified index.

If the element at the specified index is NULL, i.e., is_null(element_index) == true, then any attempt to use the result will lead to undefined behavior.

This function accounts for the offset.

Parameters

element_index Position of the desired string element

Returns: string_view instance representing this element at this index

Definition at line 437 of file column_device_view_base.cuh.

◆ element() [3/3]

template<typename T , CUDF_ENABLE_IF(cudf::is_fixed_point< T >()) >

T cudf::column_device_view_core::element ( size_type element_index ) const

inlinenoexcept

Returns a numeric::fixed_point element at the specified index for a fixed_point column.

If the element at the specified index is NULL, i.e., is_null(element_index) == true, then any attempt to use the result will lead to undefined behavior.

Parameters

element_index Position of the desired element

Returns: numeric::fixed_point representing the element at this index

Definition at line 459 of file column_device_view_base.cuh.

◆ num_child_columns()

CUDF_HOST_DEVICE size_type cudf::column_device_view_core::num_child_columns ( ) const

inlinenoexcept

Returns the number of child columns.

Returns: The number of child columns

Definition at line 483 of file column_device_view_base.cuh.

◆ operator=() [1/2]

column_device_view_core& cudf::column_device_view_core::operator= ( column_device_view_core && )

default

Move assignment operator.

Returns: Reference to this object (after transferring ownership)

◆ operator=() [2/2]

column_device_view_core& cudf::column_device_view_core::operator= ( column_device_view_core const & )

default

Copy assignment operator.

Returns: Reference to this object

◆ slice()

CUDF_HOST_DEVICE column_device_view_core cudf::column_device_view_core::slice	(	size_type	offset,
		size_type	size
	)		const

inlinenoexcept

Get a new raw_column_device_view which is a slice of this column.

Example:

// column = raw_column_device_view([1, 2, 3, 4, 5, 6, 7])
auto c = column.slice(1, 3);
// c = raw_column_device_view([2, 3, 4])
auto c1 = column.slice(2, 3);
// c1 = raw_column_device_view([3, 4, 5])

Parameters

offset	The index of the first element in the slice
size	The number of elements in the slice

Returns: A slice of this column

Definition at line 390 of file column_device_view_base.cuh.

Member Data Documentation

◆ d_children

column_device_view_core* cudf::column_device_view_core::d_children {}

protected

Array of raw_column_device_view objects in device memory. Based on element type, children may contain additional data

Definition at line 515 of file column_device_view_base.cuh.

The documentation for this class was generated from the following file:

column_device_view_base.cuh
